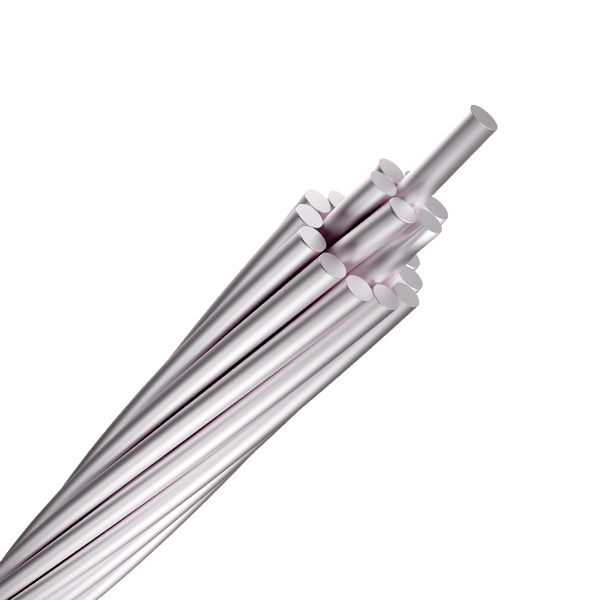

CABO DE ALUMÍNIO – CA
APLICAÇÃO
Redes aéreas de distribuição de energia e linhas de transmissão.
CONSTRUÇÃO
Condutor: fios de alumínio 1350, têmpera H19 encordoados
NORMA DE REFERÊNCIA
ABNT NBR 7271 -Cabos de alumínio nus para linhas aéreas – Especificação
ASTM B231 – Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductor
ACONDICIONAMENTO
Em bobinas de madeira
Dimensões Nominais
| CABO DE ALUMÍNIO COM ALMA DE AÇO – CA | ||||||||
|
Nome
|
Seção |
Número de fios x diâmetro (mm0
|
Diâmetro nominal (mm)
|
Carga de Ruptura (kN)
|
Rcc a 20°C (Ω / km)
|
Peso Nominal (kg/km)
|
||
|
Seção AWG/MCM
|
mm²
|
|||||||
| PEACHBELL | 6 | 13.21 | 7 x 1,55 | 4.65 | 2.50 | 2.1755 | 36.40 | |
| ROSE | 4 | 21.12 | 7 x 1,96 | 5.88 | 3.91 | 1.3606 | 58.20 | |
| LILY | 3 | 26.61 | 7 x 2,20 | 6.60 | 4.85 | 1.0799 | 73.40 | |
| IRIS | 2 | 33.54 | 7 x 2,47 | 7.41 | 5.99 | 0.8567 | 92.50 | |
| PANSY | 1 | 42.49 | 7 x 2,78 | 8.34 | 7.30 | 0.6763 | 117.10 | |
| POPPY | 1/0 | 53.52 | 7 x 3,12 | 9.36 | 8.84 | 0.5369 | 147.60 | |
| ASTER | 2/0 | 67.35 | 7 x 3,50 | 10.50 | 11.12 | 0.4267 | 185.70 | |
| PHLOX | 3/0 | 84.91 | 7 x 3,93 | 11.79 | 13.45 | 0.3384 | 234.10 | |
| OXLIP | 4/0 | 107.41 | 7 x 4,42 | 13.26 | 17.01 | 0.2675 | 296.10 | |
| VALERIAN | 250 | 126.37 | 19 x 2,91 | 14.55 | 20.68 | 0.2274 | 348.40 | |
| LAUREL | 266.8 | 135.2 | 19 x 3,01 | 15.05 | 22.13 | 0.2125 | 372.80 | |
| DAISY | 266.8 | 135.25 | 7 x 4,96 | 14.88 | 21.42 | 0.2125 | 372.90 | |
| PEONY | 300 | 151.85 | 19 x 3,19 | 15.95 | 24.29 | 0.1892 | 418.70 | |
| TULIP | 336.4 | 170.48 | 19 x 3,38 | 16.90 | 27.27 | 0.1686 | 470.00 | |
| CANNA | 397.5 | 202.09 | 19 x 3,68 | 18.40 | 31.76 | 0.1422 | 557.20 | |
| COSMOS | 477 | 241.15 | 19 X 4,02 | 20.10 | 37.01 | 0.1192 | 664.90 | |
| SYRINGA | 477 | 241.03 | 37 x 2,88 | 20.16 | 38.60 | 0.1192 | 664.50 | |
| ZINNIA | 500 | 253.3 | 19 x 4,12 | 20.60 | 38.87 | 0.1134 | 698.40 | |
| HYANCINTH | 500 | 252.89 | 37 x 2,95 | 20.65 | 40.50 | 0.1136 | 697.20 | |
| DAHLIA | 556.5 | 282.37 | 19 x 4,35 | 21.75 | 43.33 | 0.1018 | 778.50 | |
| MISTIETOE | 556.5 | 281.07 | 37 x 3,11 | 21.77 | 44.00 | 0.1022 | 774.90 | |
| ORCHID | 636 | 322.24 | 37 x 3,33 | 23.31 | 50.44 | 0.0892 | 888.40 | |
| HEUCHERA | 650 | 330.03 | 37 x 3,37 | 23.59 | 51.66 | 0.0871 | 909.90 | |
| VERBENA | 700 | 353.95 | 37 x 3,49 | 24.43 | 55.40 | 0.0812 | 975.90 | |
| FLAG | 700 | 354.45 | 61 x 2,72 | 24.48 | 57.10 | 0.0811 | 977.20 | |
| VIOLET | 715.5 | 362.11 | 37 x 3,53 | 24.71 | 56.68 | 0.0794 | 998.40 | |
| PETÚNIA | 750 | 380.81 | 37 x 3,62 | 25.34 | 58.56 | 0.0755 | 1050.00 | |
| CATTAIL | 750 | 380.99 | 61 x 2,82 | 25.38 | 60.35 | 0.0754 | 1050.00 | |
| ARBUTUS | 795 | 402.14 | 37 x 3,72 | 26.04 | 61.85 | 0.0715 | 1109.00 | |
| LILAC | 795 | 402.92 | 61 x 2,90 | 26.10 | 63.82 | 0.0713 | 1111.00 | |
| ANEMONE | 876.8 | 444.27 | 37 x 3,91 | 27.37 | 66.71 | 0.0647 | 1225.00 | |
| MAGNOLIA | 954 | 483.74 | 37 x 4,08 | 28.56 | 72.63 | 0.0594 | 1334.00 | |
| CAMÉLIA | 1000 | 506.04 | 61 x 3,25 | 29.25 | 78.34 | 0.0568 | 1395.00 | |
| BLUEBELL | 1033.5 | 522.42 | 37 x 4,24 | 29.68 | 78.44 | 0.055 | 1440.00 | |
| LARKSPUR | 1033.5 | 524.9 | 61 x 3,31 | 29.79 | 81.25 | 0.0547 | 1447.00 | |
| MARIGOLD | 1113 | 563.65 | 61 x 3,43 | 30.87 | 87.25 | 0.051 | 1554.00 | |
| HAWTHORN | 1192.5 | 603.78 | 61 x 3,55 | 31.95 | 93.46 | 0.0476 | 1665.00 | |
| NARCISSUS | 1272 | 645.29 | 61 x 3,67 | 33.03 | 98.15 | 0.0445 | 1779.00 | |
| COLUMBINE | 1351 | 684.55 | 61 x 3,78 | 34.02 | 104.10 | 0.042 | 1887.00 | |
| CARNATION | 14231 | 724.97 | 61 x 3,89 | 35.01 | 107.70 | 0.0396 | 1999.00 | |
| GLADIOLUS | 1510.5 | 766.55 | 61 x 4,0 | 36.00 | 113.80 | 0.0375 | 2113.00 | |
| COREOPSIS | 1590 | 805.36 | 61 x 4,10 | 36.90 | 119.60 | 0.0357 | 2220.00 | |
